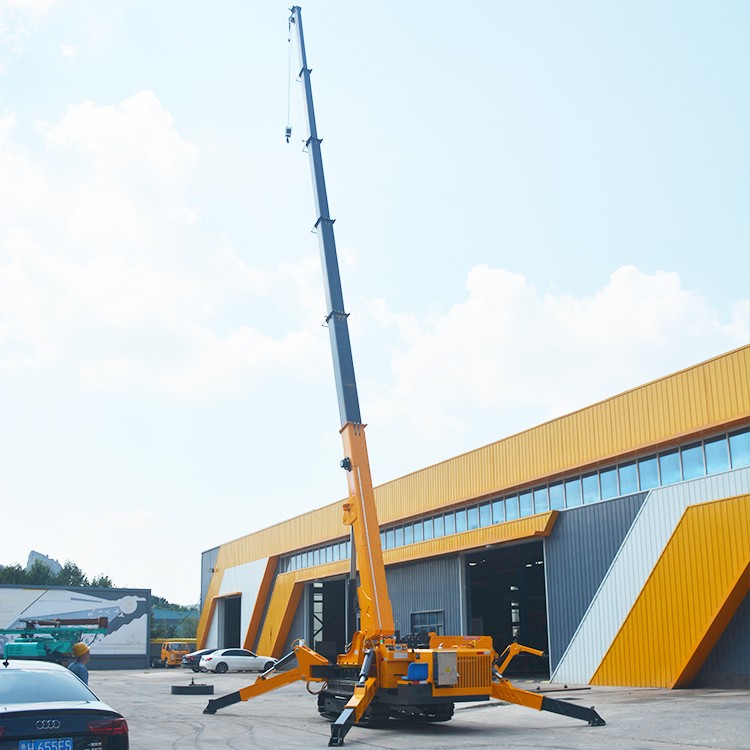

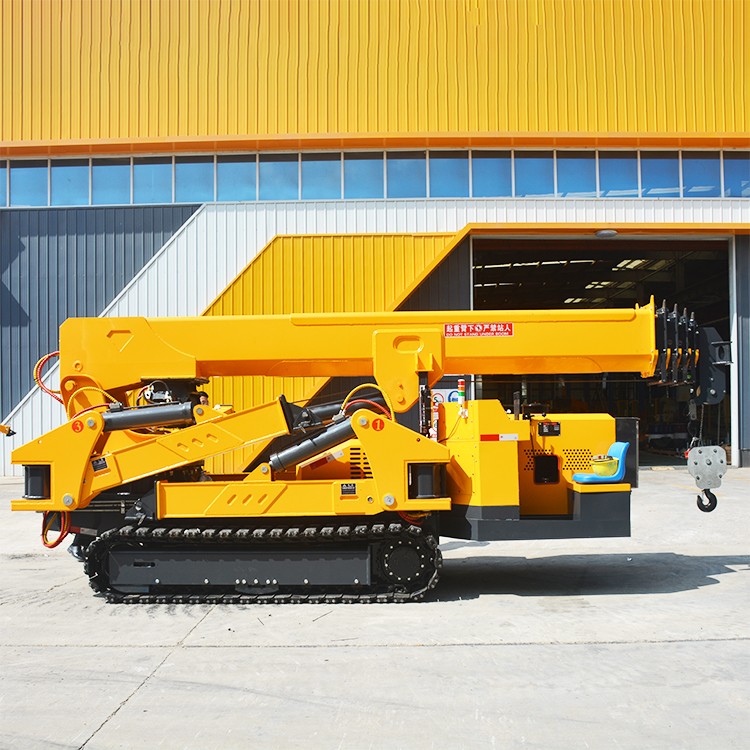

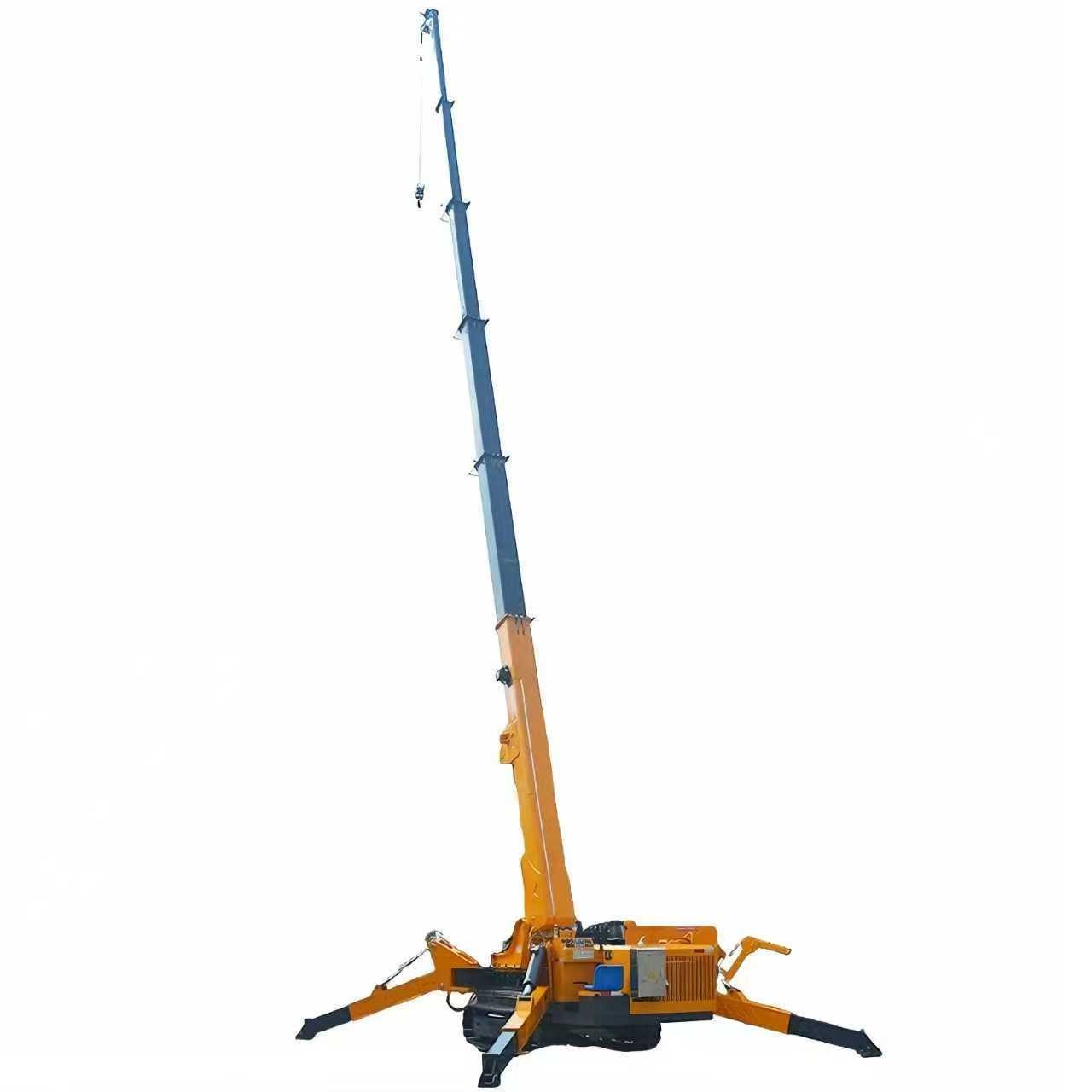

Specifications
|
12t |
|
|
Maximum operating radius |
19m 66×0.5t |
|
|
Maximum Ground Lift |
21m |
|
|
Winch Device |
Hook lifting speed |
10m/min (4 ropes) |
|
Hoist specifications |
12T |
|
|
Specification of steel wire rope
|
Φ12mm×120m |
|
|
Telescopic Device |
Telescopic arm form |
5m*5-section lifting arm(Support customization) |
|
Telescopic arm length |
5.5m-21m |
|
|
Boom length/time |
12.3m/60sec (Support customization) |
|
|
Luffing device |
Boom angle/time |
0-78°/17sec |
|
Gyroscope |
Rotation angle/speed |
0-360°(Continuous)/42sec |
|
Outrigger |
Outrigger movement form |
Manual screw out+hydraulic telescopic+automatic support |
|
Maximum extension amplitude (mm) |
7600(length) X 5600 (rear) X 6700 (front) |
|
|
Running Gear |
Track structure |
Steel track |
|
行走方式Walking mode |
Hydraulic motor drive |
|
|
Walking speed |
0-2.5km/h |
|
|
Gradeability |
25°(36%) |
|
|
Engine |
Manufacturer |
Yunnei (Support customization) |
|
Start mode |
Electric start |
|
|
Start performance |
-5°C~40°C |
|
|
Fuel/Volume |
Diesel oil/8L |
|
|
Battery capacity |
24v 45AH |
|
|
Emission standard |
National PhaseⅡ |
|
|
Operating System |
Operation type (boom/leg), manual walking |
Manual operation, manual walking (optional remote control) |
|
Operational Characteristics |
Manual operation (optional remote control) |
|
|
Vehicle size |
6.15 meters long, 1.86 meters wide, and 2.48 meters high |
|
|
Dead weight |
12500kg |
|
|
Track size |
400 (width) 270 (pitch) 22 (section) |
|
|
Optional device |
Optional torque controller/remote control /hanging basket/Hydraulic fly jib |
|
