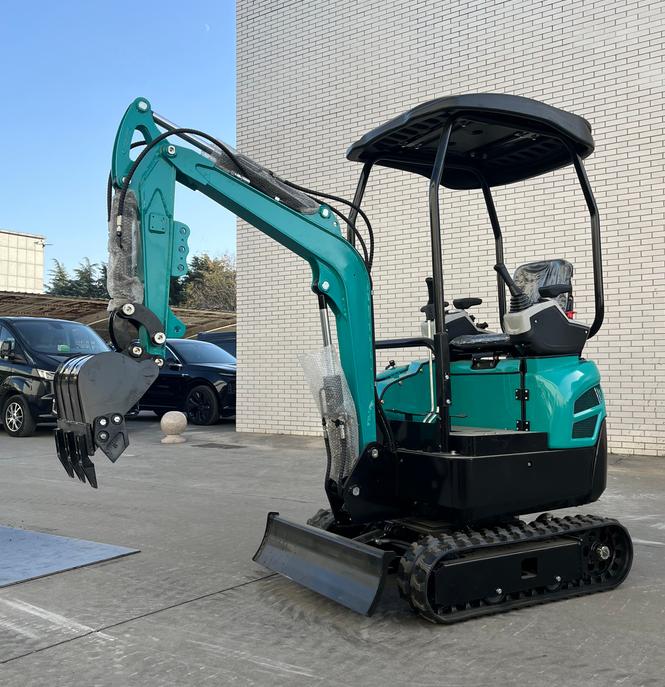

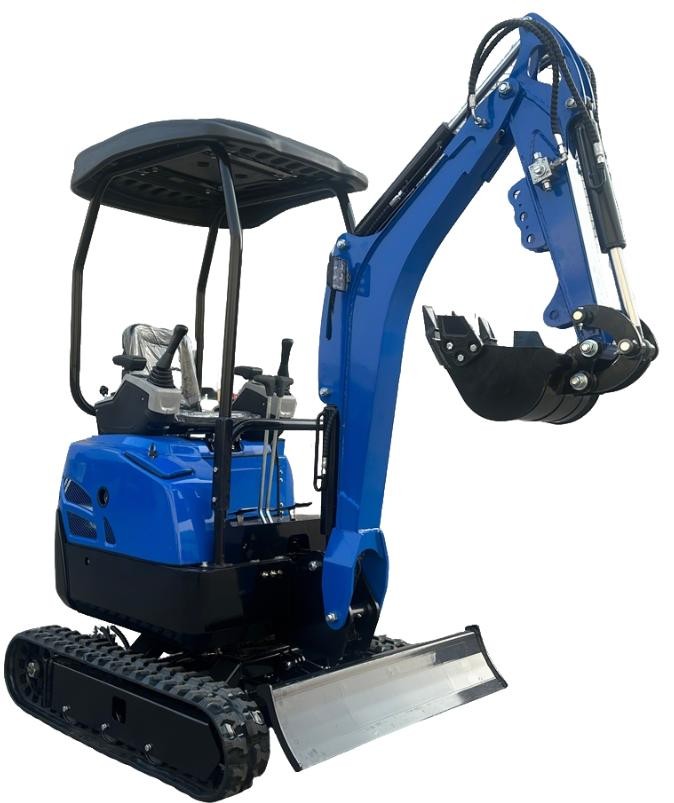

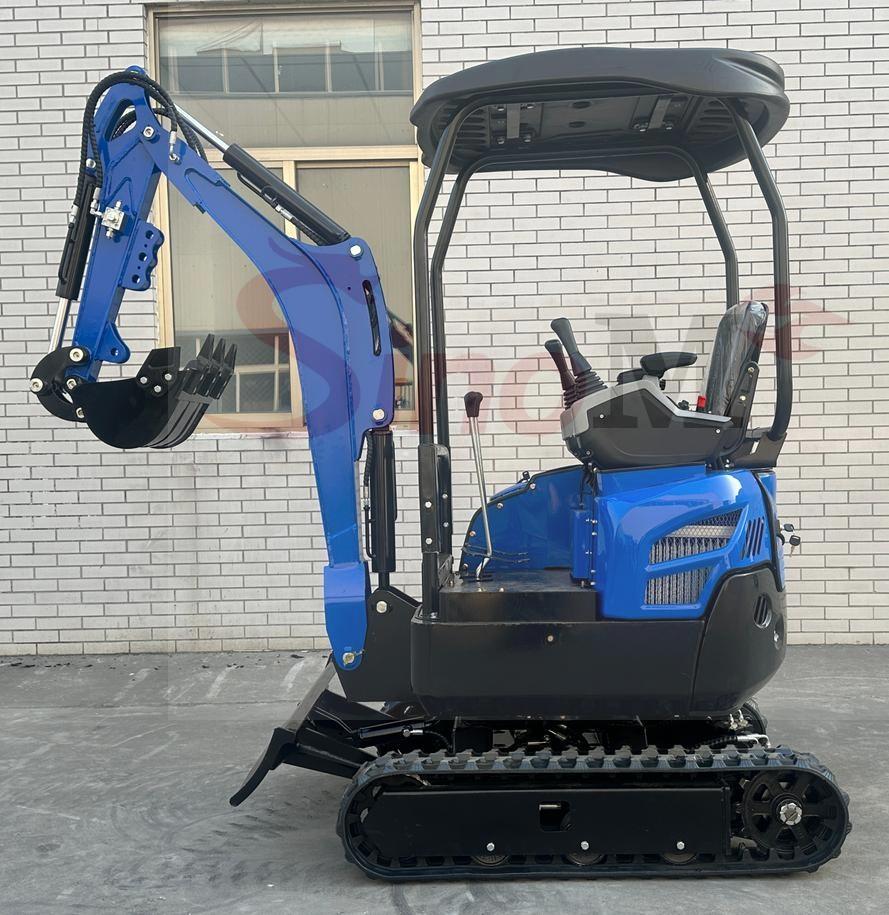

CHARACTERISTIC
Using high-quality brand engines, the perfomance is stable and the fuel consumption is low.
The body is compact and the operation is flexible,making it suitable forvarious operations in narrow spaces.
Using high-quality carbon steel and sand blasting and powdercoating techniques,the paint surface is moredurable and less prone torusting
The operationis simple and easy to leam, with precise and controllable movements.
Productapplication
Suitable for mountain land reclamation, municipal engineering, landscaping, ditch excavation andweed removal, soil turning for greenhouse cultivation, livestock breeding, and farm maintenance, etc.
Optionalequipment
The engine can choose 25T2Engine optional:Kubota D722, Koop 192 (Euro V), Briggs&Stratton 25T2 can choose :Optional configurations: Cab, boom lateral movement, chassis telescopic extension
|
Item |
Specification |
|
Engine type |
KOOP 192F |
|
Power types |
Single-cylinder, four-stroke, air-cooled, vertical |
|
Displacement (L) |
0.499 |
|
Rated power (kw / rpm) |
7.6/3000 |
|
Horsepower (HP) |
10.3 |
|
Fuel types |
Diesel oil |
|
Fuel consumption (g / kwh) |
275 |
|
Fuel tank capacity (L) |
5.5 |
|
Engine oil capacity (L) |
1.65 |
|
Overall machine dimensions (mm) |
2870 × 1100 × 2300 |
|
Track ground contact length (mm) |
1200 |
|
Track width (mm) |
180 |
|
Maximum digging depth (mm) |
180 |
|
Maximum dumping height (mm) |
1745 |
|
Maximum digging height (mm) |
2580 |
|
Gradeability |
30° |
|
Travel speed (km/h) |
0-2.5 |
|
Bucket digging force (kN) |
11.5 |
