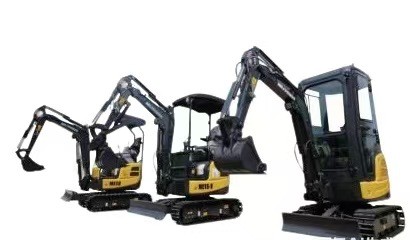

sm18 mini excavator

Model

ME18C

ME18U

ME19U

Weight (T)

1.86

1.86

1.95

Bucket capacity (m³)

0.05

0.05

0.05

Engine model

YANMAR 3TNV70

YANMAR 3TNV74F

YANMAR 3TNV74F

Power (kw/r/min)

10.3/2200

11.2/2200

11.2/2200

Emission Standard

Stage III

Euro V

Euro V

Fuel tank capacity (L)

20

20

20

Travel speed (km/h)

2.2/4.2

2.2/4.2

2.2/4.2

Swing speed (r/min)

10

10

10

Climbing ability (%)

55

55

55

Bucket digging force (KN)

15

15

15

Arm length (mm)

950

950

950

Boom length (mm)

1720

1720

1720

Ground pressure (KPa)

30

30

30

Hydraulic oil tank capacity (L)

16

16

16

Model

ME18C

ME18U

ME19U

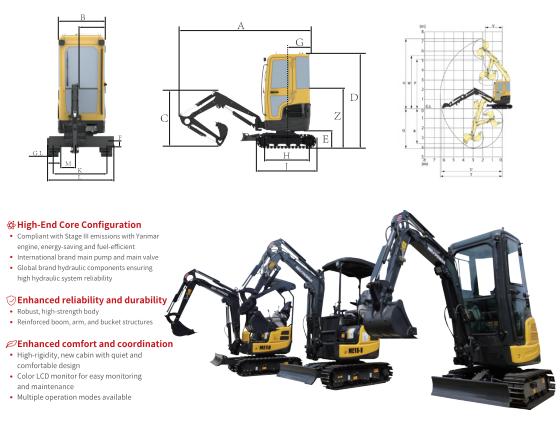

A-Overall length (mm)

3460

3460

3460

B-Overall width (mm)

950/1280

950/1280

950/1280

C-Overall height (boom top) (mm)

1450

1450

1450

D-Overall height (cab top) (mm)

2370

2440

2440

E-Counterweight ground clearance (mm)

460

460

460

F-Minimum ground clearance (mm)

175

175

175

G-Tail swing radius (mm)

650

650

650

H-Track ground length (mm)

1180

1180

1180

J-Track length (mm)

1530

1530

1530

K-Gauge (mm)

720/1050

720/1050

720/1050

L-Track width (mm)

950/1280

950/1280

950/1280

M-Track plate width (mm)

230

230

230

N-Swing platform width (mm)

950

950

950

Model

ME18C

ME18U

ME19U

O-Maximum digging height (mm)

3690

3690

3690

P-Maximum unloading height (mm)

2630

2630

2630

Q-Maximum digging depth (mm)

2200

2200

2200

R-Maximum vertical wall digging depth (mm)

1775

1775

1775

T-Maximum digging reach (mm)

3810

3810

3810

U-Maximum digging reach at ground level (mm)

3710

3710

3710

V-Minimum swing radius (mm)

1520

1520

1520

W-Maximum height at minimum swing radius (mm)

2670

2670

2670

X-Distance from swing center to rear end (mm)

650

650

650

Z-Counterweight height (mm)

783

783

783

A1-Ground length (transportation) (mm)

2250

2250

2250
