· It has a small working radius and can operate in narrow spaces, suitable for trench backfilling.
· Equipped with a Yunnei diesel engine, featuring abundant power, surplus capacity and stable performance.
· Adopts dual hydraulic pumps: the main pump supplies vibration, and the auxiliary pump supplies steering. When not vibrating, the hydraulic oil directly flows back at low pressure, thus reducing oil pressure and oil temperature, making it suitable for long-time operation.
· This machine has no clutch, and realizes stepless speed change between high and low speeds, with light and simple operation and high efficiency.
· It is mainly used for auxiliary road construction, pipeline earthwork backfilling, underground parking lots, and foundation compaction of rural road earthwork and gravel.
· The surface is treated with plastic spraying, making it aesthetically pleasing, rust-proof and corrosion-resistant. This product has passed CE certification.

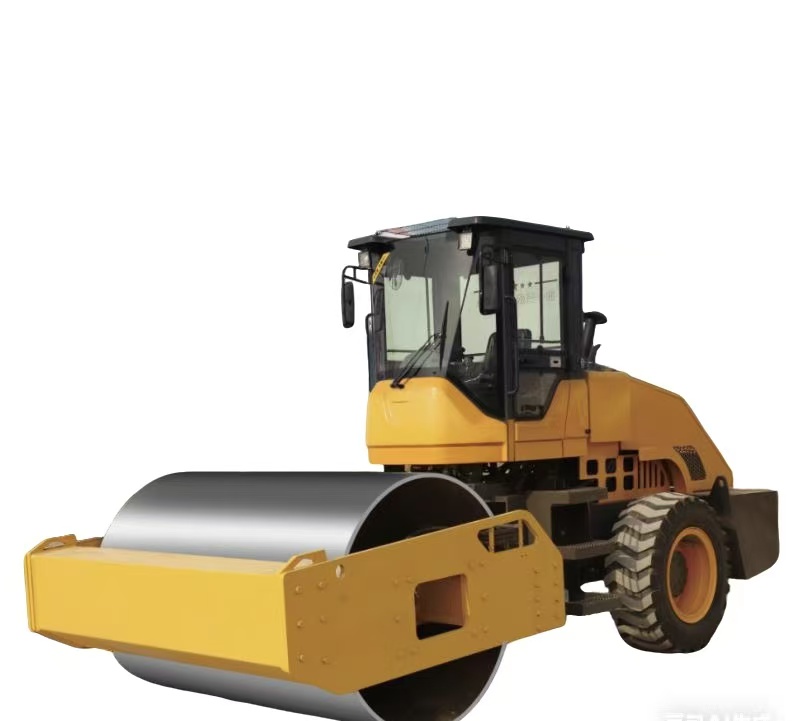

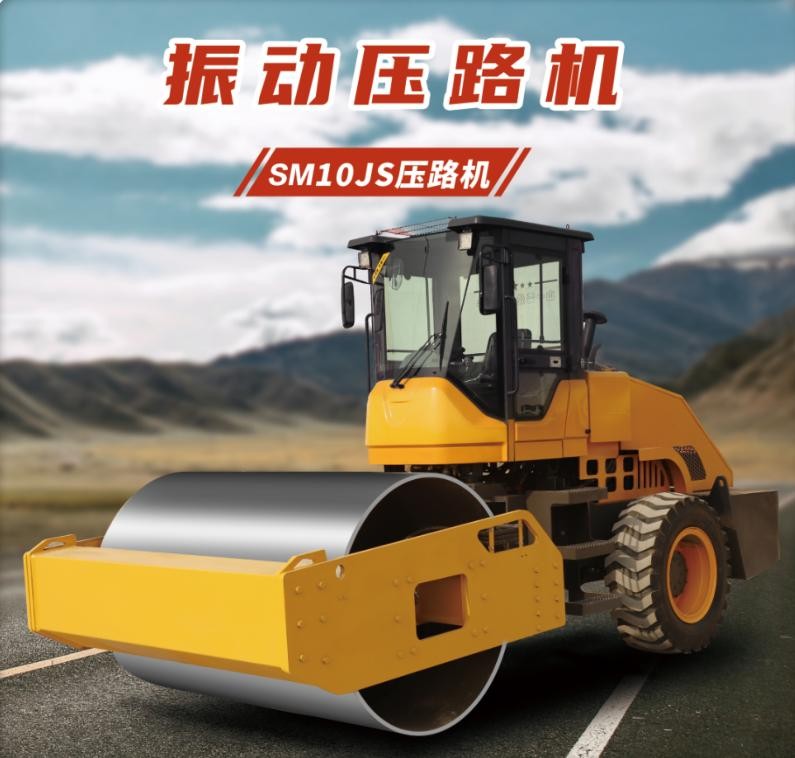

SM10JS Roller Parameters
|
Category |
Item |
Value |
Category |
Item |
Value |
|
Weight Parameters |
Working Weight |
10000 kg |
Compaction Parameters |
Vibration Frequency |
37.5 Hz |
|
|
Front Axle Weight Distribution |
\ |
|
Nominal Amplitude |
0.6 mm |
|
|
Rear Axle Weight Distribution |
\ |
|
Excitation Force |
285/150 kN |
|
|
Static Linear Load |
385 N/cm |
|
Drum Diameter |
Φ1400 mm |
|
Mobility Parameters |
Travel Speed |
0-16 km/h |
|
Compaction Width |
2130 mm |
|
|
Theoretical Gradeability |
30° |
Engine |
Model |
YN38TRF4 |
|
|
Minimum Turning Radius |
4000 mm |
|
Type |
Diesel Engine |
|
|
Minimum Ground Clearance |
400 mm |
|
Rated Power |
36.8 kW |
|
|
Wheelbase |
3160 mm |
|
Rated Speed |
2400 r/min |
|
Volume |
Hydraulic Oil Tank |
180 L |
Water Sprinkler Tank |
/ |
|
|
|
Fuel Tank |
200 L |
— |
/ |
|
;
