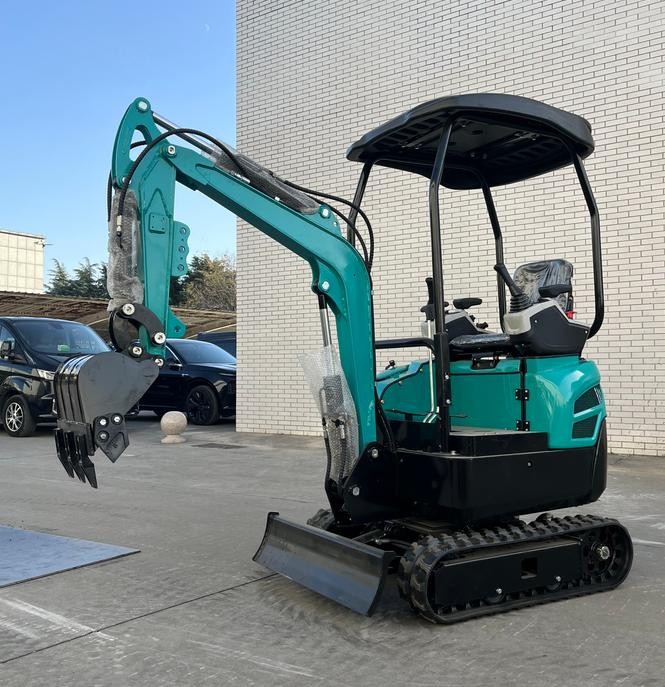

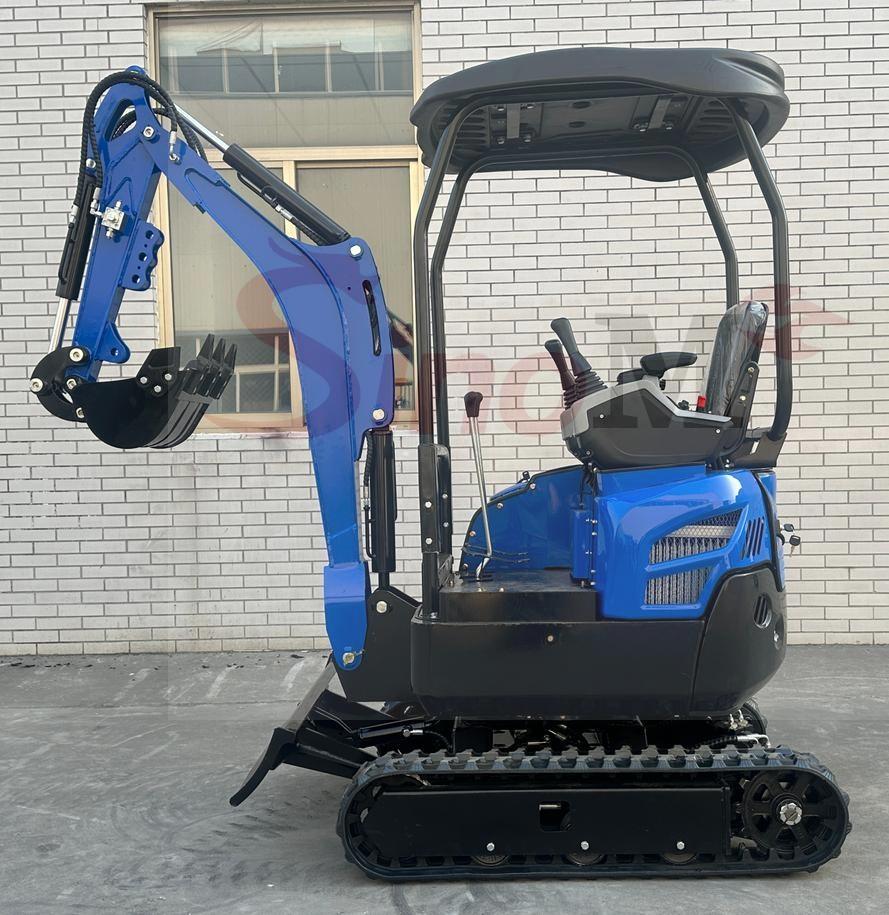

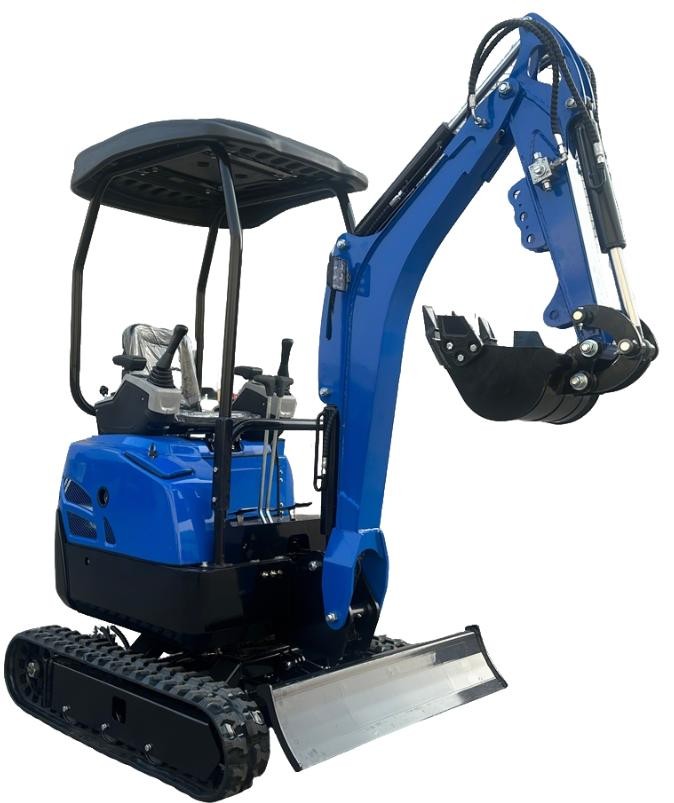

SIE18 MINI EXCAVATOR FOR CONSTRUCTION

Product Item : SIE18
Category： EXCAVATOR
best stable
high quality parts
UL certifecate
high-quality brand engines
Product description：We provide a full range of mini excavators including 0.8ton, 1ton, 1.5ton, 2ton, and 3ton models. These compact diggers are built with strong power, stable hydraulic system, and comfortable operation.
INQUIRY EMAIL

CHARACTERISTIC

Using high-quality brand engines,the perfomance is stable and the fuel consumption is low.

The bodyis compact and theoperation is flexible, making it suitable forvarious operations in narrow spaces.

Using high-quality carbon steel and sand blasting and powder coating techniques,the paint surface is moredurable and less prone torusting,

The operation is simple and easy to leam,with precise and controllable movements.

Product application

It is suitable for mountain land reclamation, municipal engineering, landscaping, water and electricityinstallation, orchard ditch digging and weeding, rural sewer dredging, etc.

optionalequipment

Engine can choose 374The engine options available are: Kubota D902 and Yanmar 374.Optional configurations: driver's cab, large arm side swing, chassis extension and retraction

Item	Specification
Engine type	Kubota D722
Power types	vertical, water-cooled, four-stroke
Displacement (L)	0.719
Rated power (kw / rpm)	14.9/3600
Horsepower (HP)	20.3
Fuel types	Diesel oil
Fuel consumption (g / kwh)	5
Fuel tank capacity (L)	1800
Engine oil capacity (L)	0.05
Overall machine dimensions (mm)	3250 × 1100 × 2300
Track ground contact length (mm)	1300
Track width (mm)	230
Maximum digging depth (mm)	2200
Maximum dumping height (mm)	2300
Maximum digging height (mm)	3200
Gradeability	32°
Travel speed (km/h)	0-3
Bucket digging force (kN)	18
