Specifications
Specifications |
5t |
|
|
Maximum Operating Radius |
15m |
|
|
Maximum Ground Lift |
17m |
|
|
Winch Device |
Hook lifting speed |
12m/min (4 ropes) |
|
Specification of steel wire rope |
Φ12mm×80m |
|
|

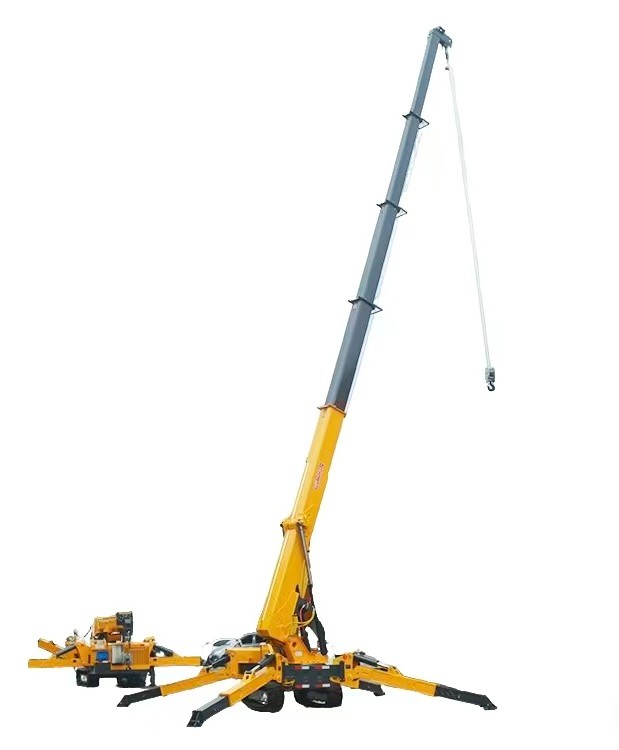

Telescopic Device |
Boom form |
4m×5-section lifting arm（Support customization） |
|
Boom length/time |
4.5m-17m/54sec （Support customization） |
|
|
Luffing device |
Boom angle/time |
0-78°/13sec |
|
Gyroscope |
Rotation angle/speed |
0-360°(Continuous)/38sec |
|

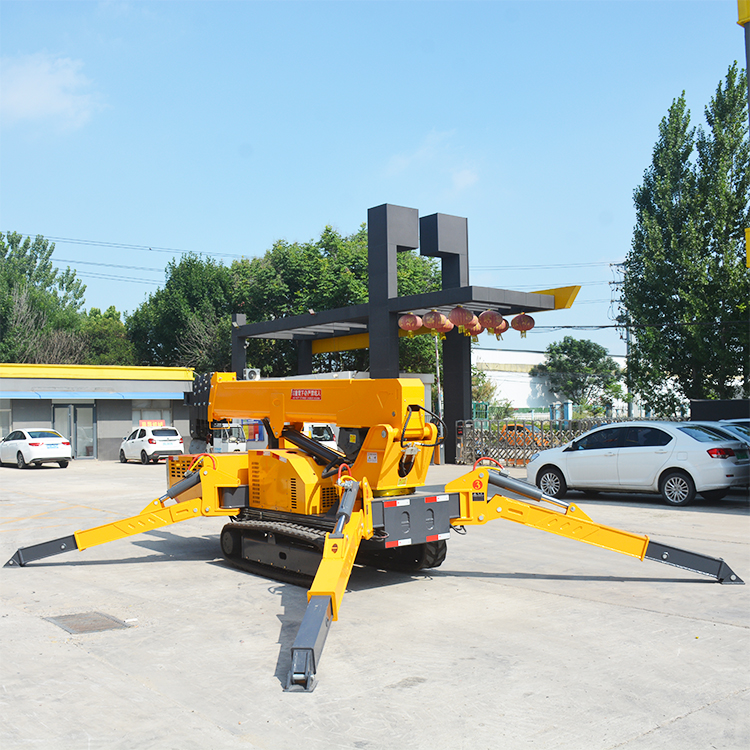

Outrigger |
Outrigger movement form |
Manual screw out+oil pressure automatic support (two legs) |
|
Maximum extension amplitude (mm) |
5800 (length) X4900 (rear) X5600 (front) |
|
|
Running Gear |
Walking mode |
Hydraulic motor drive double speed |
|
Walking speed |
0-2.5km/h |
|
|
Gradeability |
25°(36%) |
|
|
Engine |
Manufacturer |
Yunnei（Support customization） |
|
Type/displacement |
490 |
|
|
Start mode |
Electric start |
|
|
Start performance |
-5°C~40°C |
|
|
Fuel/Volume |
Diesel oil/8L |
|
|
Battery capacity |
24V 45AH |
|
|
Emission standard |
National PhaseⅡ |
|
|
Operating System |
Operation type (boom/leg), manual walking |
Manual operation, manual walking(Optional remote control) |
|
Operational Characteristics |
Manual operation(Optional remote control) |
|
|
Vehicle Size |
4.7 meters length, 1.5 meters width, and 2.25 meters height |
|
|
Dead-weight (T) |
6100kg |
|
|
Track Size |
300 (width) 52.5 (pitch) 90 (section) |
|
|
Optional device |
Optional torque controller/remote control /hanging basket/Hydraulic fly jib |
|
