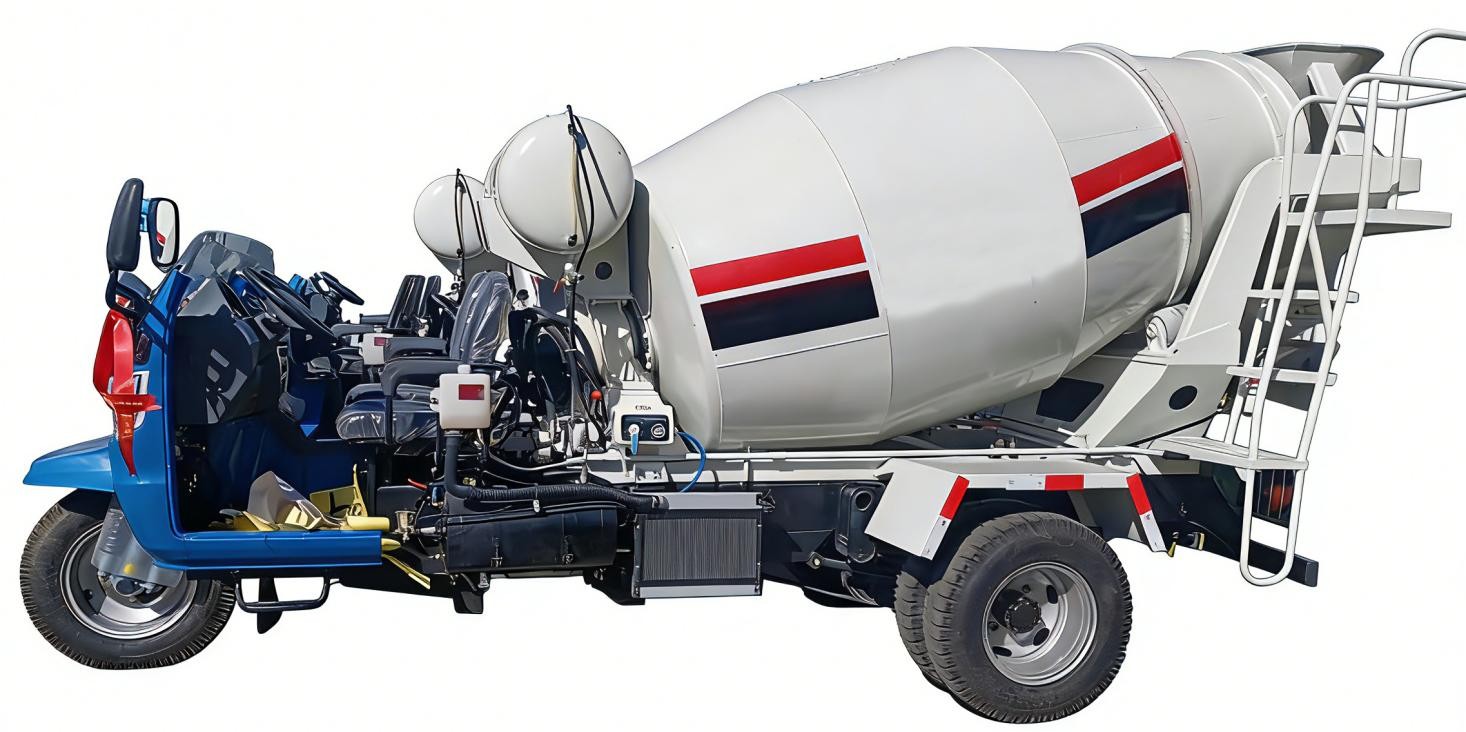

Wuzheng chassis concrete mixer truck

Chassis Model

Wuzheng 7YP-1750D13 Heavy Duty

Rear Axle

4 tons

Curb Weight (kg)

2800

Number of Leaf Springs

11+5 / Three-stage Shock Absorption

Overall Dimensions (L×W×H)

5200×1600×2600mm

Service Brake

Oil Brake

Wheelbase (mm)

2930mm

Parking Brake

Spring Brake (Air Cut-off)

Maximum Gradient

15%

Tank Material

Wear-resistant Manganese Steel

Maximum Design Speed

46.8km/h

Rated Mixing Capacity

2 cubic meters

Drive Configuration

3×2

Feed & Discharge Rate (m³/min)

≥2

Tires

7.00-16 (rear dual) / 6.50-16 (front)

Radiator

24V Automatic Air-cooled

Engine Model

Changchai 32

Water Tank Capacity (L)

112

Power (kW)

23

Water Supply Method

Pneumatic Water Supply

Emission Standard

GB19756-2005(II)

Gear Reducer

Domestic / Import Optional

Displacement (ml)

1548

Hydraulic Motor

Domestic / Import Optional

Gearbox

4-speed with auxiliary gear

Hydraulic Pump

Domestic / Import Optional

Remarks

Original rear dual wheels, engineering vehicle frame, air brake & spring brake, front three-stage shock absorption.
